Reference: WF4115ZT

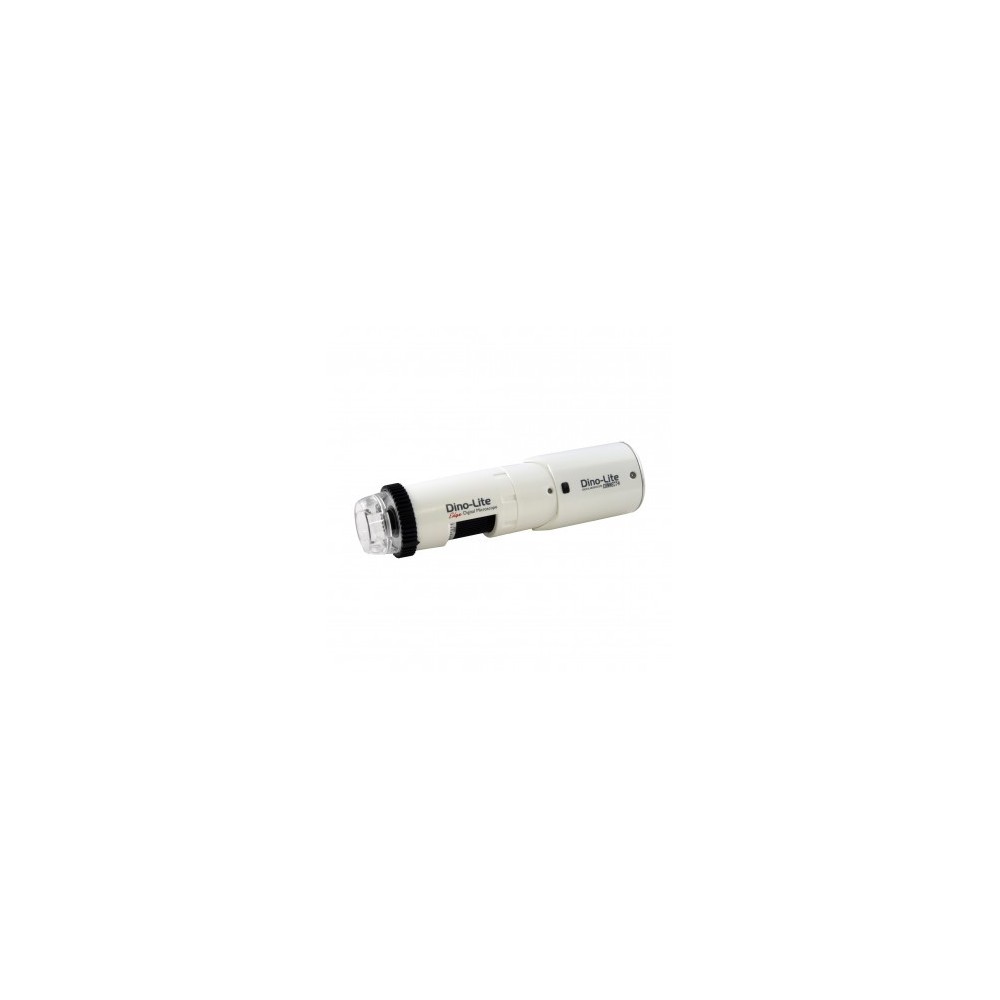

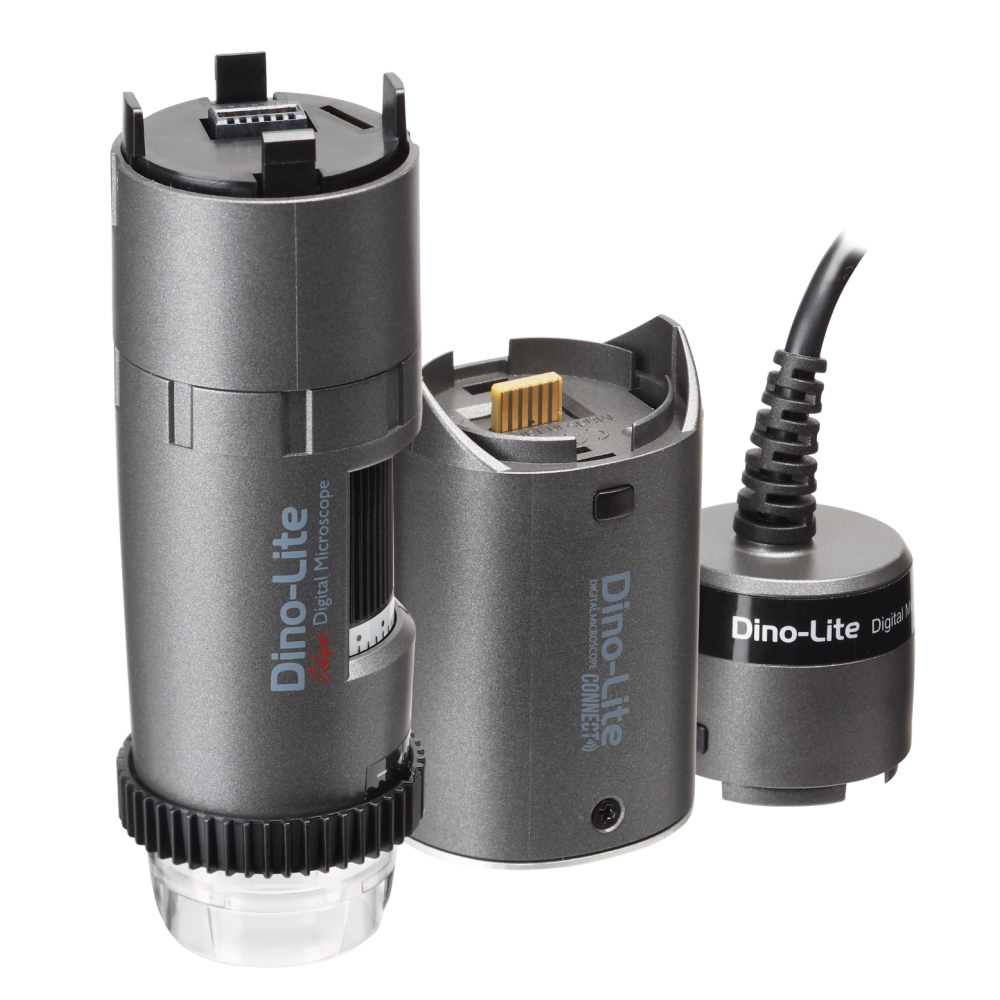

The Dino-Lite Edge 1.3MP Bundle WF4115ZT(W) includes the AF4115ZT(W) modular device with FLC is designed to meet most professional applications within 20x- 220x magnifications as well as the WF-20(W) Wireless Adapter. The new modular design allows for USB connection or a quick swap to wireless with the included WF-20(W) adapter making it a completely cordless and portable microscope.
Key Features :
LEDs : White (8)
Polarization : Yes
Dimensions : 11.4cm (H) x 3.3cm (D) (4.4" x 1.29")
Weight : 111g (3.9 oz)
Cable Length : 182cm (71.65 in)
Magnification Range : 20x - 220x
Working Distance : Standard
Lens Type : Glass
Megapixels : 1.3 MP
Sensor Type : CMOS
Resolution : 1280 × 1024 pixels
Frame Rate (max) : 30 FPS
Image Save Formats (Windows) : BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Image Save Formats (Mac OS) : JPEG, PNG
Video Save Formats (Windows) : WMV, FLV, SWF
Video Save Formats (Mac OS) : MOV
Operating System : Windows XP, Vista, 7, 8, 10, Mac OS 10.10+
Included Software DinoCapture 2.0 : (Windows), DinoXcope (Mac OS)
Imaging Standards : UVC
Flexible LED Control : Yes
Measurement : Yes
Automatic Magnification Reading : No
Extended Depth of Field : No
Enhanced Dynamic Range : No
Wireless Ready :Yes
Magnification Lock : Yes
Body Material : Polycarbonate Resin (CALIBRE 2061-15)
Microtouch Sensor : Yes
Package Includes : Microscope, Carry Pouch, Software CD, WF-20(W) Wireless Adapter, Edge Calibration Target, Alternate end caps
Warranty Period : 2 years
Manufactured in : Taiwan
Service & Support : OPTICS CONCEPT
Regulatory Approval : CE, FCC
The Dino-Lite Edge 1.3MP Bundle WF4115ZT(W) includes the AF4115ZT(W) modular device with FLC is designed to meet most professional applications within 20x- 220x magnifications as well as the WF-20(W) Wireless Adapter. The new modular design allows for USB connection or a quick swap to wireless with the included WF-20(W) adapter making it a completely cordless and portable microscope.
