Reference: DSL210D

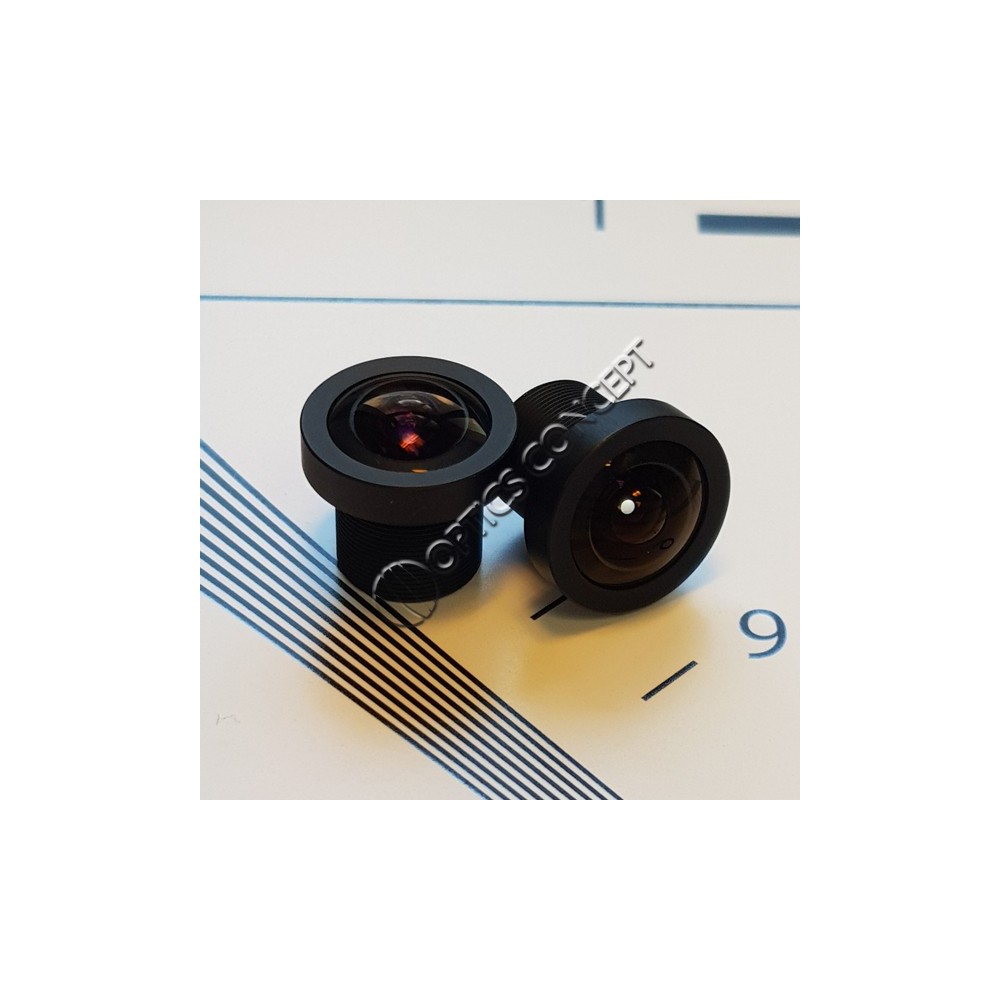

Lens DSL210D
€95.30
Tax included
Key Features :
• Wide field of view : 126 deg HFOV on 1/3” imager
• Excellent low light performance: F/2.0 aperture
• All glass elements providing environmental stability
• Distortion: f-θ type (image height is proportional to the input angle h=f*θ where f is the focal length).
The DSL210 lens is a miniature wide-angle lens optimized for 1/3” format VGA imagers. The wide field of view, low F-number, and low distortion make this lens ideal for security and automotive applications.
DSL210D
Data sheet
- Lens barrel thread
- M12 x 0,50
- Focal length
- 2,17 mm
- Sensor size
- 1/3"
- Resolution
- VGA
- F/#
- F/2.0
- Distortion
- 0,6% f-θ
- Back focus
- 4,33 mm
- Description
- Miniature wide-angle lens
- Height
- 20,5 mm
- Diameter
- 17,1 mm
- Total length
- 20,5 mm
- Maximum FOV for image circle
- 126°
- Construction
- Hybride
- Body material
- Metal
- Color
- Black
- Taille du capteur maximale
- 1/3"
- Champ de vision maximum
- 175° à 120°
- Focale
- 2 à 5 mm
- Ouverture
- Inférieur ou égal à 2
Key Features :
• Wide field of view : 126 deg HFOV on 1/3” imager
• Excellent low light performance: F/2.0 aperture
• All glass elements providing environmental stability
• Distortion: f-θ type (image height is proportional to the input angle h=f*θ where f is the focal length).
