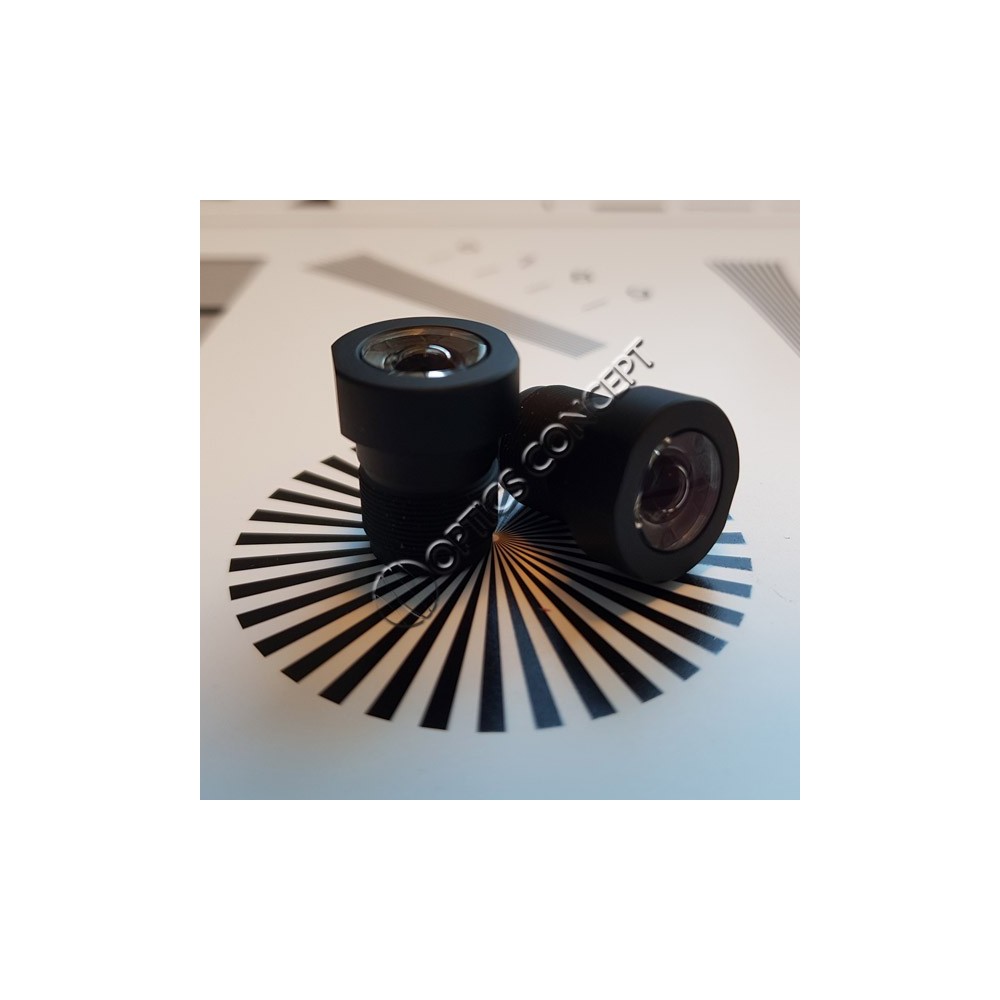

Lens DSL949A

DSL217C-670-F1.8

•  Maximum field of view (FOV): 185o
•  F/1.8 aperture for low-light performance
•  Hybrid glass-plastic design
•  Suitable for megapixel resolution sensors

The DSL202 lens is a multi-element glass lens optimized for imager sizes up to 1/3" format and HD resolution. The all glass, all metal construction enables good thermal stability. The DSL202 is also environmentally ruggedized

Key Features :

• Wide field of view : 126 deg HFOV on 1/3” imager
• Excellent low light performance: F/2.0 aperture
• All glass elements providing environmental stability
• Distortion: f-θ type (image height is proportional to the input angle h=f*θ where f is the focal length).

Key Features :

• Wide field of view: 75°HFOV on 1/4” imager
• All glass elements provides environmental stability
• Distortion: f-θ type (image height is proportional to the input angle h = f*θ where f is the focal length)

Applications :

• Security and Surveillance

DSL203A Wide Angle Security Lens

Key Features :

• Designed for multi-megapixel resolution sensors
• Full field of view of up to 140°
• High brightness, F/2.6 aperture
• All glass design provides environmental stability

Applications :

• Security and surveillance
• Automotive rear view cameras

Key Features :

•  Tailored DistortionTM
•  4k+ resolution•  Compact Design

Applications :

• Video Conferencing
• Drones
• Security and Surveillance
• Consumer Devices and IoT

DSL216 lens is a miniature, high-resolution SuperFisheyeTM lens designed to give a fisheye image with a horizontal field of view greater than 180 degrees on a 1/3” format sensor making it ideal for security or emerging applications like 360° cameras. Additionally, the DSL216 has an all-glass all-metal design which gives it thermal stability.

The DSL935 lens is a multiple element glass lens optimized for 1/1.8” format imagers with up to 5MP resolution. The small form factor makes this lens ideal for high performance handheld cameras.

The DSL180 lens is a Tailored DistortionTM, miniature SuperFisheyeTM lens designed with a field of view of up to 200 degrees on 1/5” to 1/2.8” format imagers with HD resolution. Special design techniques and hybrid design form are used to achieve increased magnification (angular resolution) off axis compared to a standard fisheye lens.

NIR versions: No IR cut filter

DSL239-650-F2.4
4K Miniature SuperFisheyeTM Lens

Key Features :

• SuperFisheye FOV: 186°
• Good low light perfomance : F/2.4 aperture
• 27,00mm TTL

Applications :

• Security and Surveillance cameras
•  Drone cameras
•  Immersive Imaging cameras

The DSL901 is a multi-element glass lens designed for 2/3” imagers with up to 1.3MP resolution. The compact form factor of the DSL901 relative to the large imager format size makes this lens ideal for size constrained machine vision applications.

*NIR = without IR cut filter

Ultra-low F/# for superb low-light imaging in Automotive, Autonomous and Security related applications, 4K, Low-Ghost design provides excellent image quality.

• Hybrid lens for excellent image and distortion characteristics
• HDR-Optimized for Low flare and ghost
• High (4K) resolution and extremely low F/# for bright, sharp images.

The DSL936 is a multi-element glass lens optimized for 1⁄2” imagers with up to 5MP resolution. The DSL936 is Day/Night optimized for improved performance in the near infrared making this lens ideal for applications which require active illumination at 850nm or 940nm.

The DSL212 is a miniature wide-angle all-glass lens with Tailored Distortion. This lens was optimized for 1/3” format sensors with up to HD resolution. The Tailored Distortion wide field of view and all glass construction make it ideal for outdoor applications which depend on off axis angular resolution.

Available in NIR versions: No IR cut filter

The DSL181 lens is a miniature SuperFisheyeTM lens with Tailored DistortionTM designed with a field of view of up to 190 degrees on 1/4” to 1/2” format imagers with HD resolution. The low F-number, thermal stability, and special distortion characteristics make this lens ideal for exterior based camera applications.
