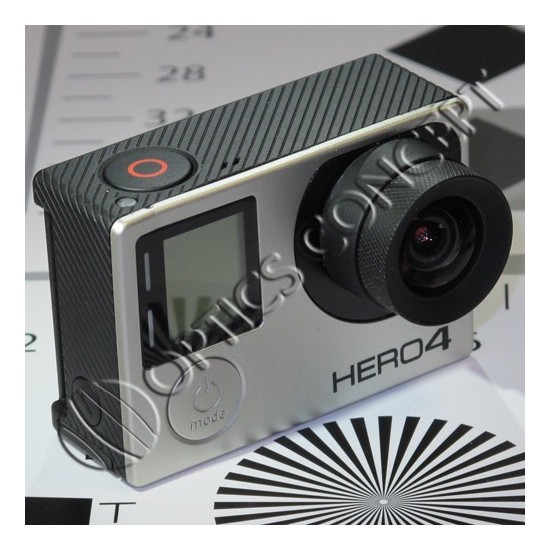

Objectif DSL604A-NIR-F2

Compatible with GoPro HERO1, HERO2 , HERO3, HERO3+ and HERO4 ®.

Maintains large field properties for your camera and HD quality.

It will bring you images with very low distortion and optimum color resolution.

The prefered optical of drone owners.

Choose your filter : we can offer a version for infrared observations.

DSL261

Key Features :

•. Ultra-wide FOV: 160°
•  Sunex NoGhostTM HDR-Optimized design
•  All-Glass Design for thermal stability
•  Good low light performance: F/2.8 aperture
•  Compact size

Applications :

•  Security and Surveillance cameras
•  Drone cameras
•  Immersive Imaging cameras

DSL216 lens is a miniature, high-resolution SuperFisheyeTM lens designed to give a fisheye image with a horizontal field of view greater than 180 degrees on a 1/3” format sensor making it ideal for security or emerging applications like 360° cameras. Additionally, the DSL216 has an all-glass all-metal design which gives it thermal stability.

Key Features :

•  F/1.7 for enhanced low light sensitivity
•  All glass to optimize thermal stability
•  Low stray light for HDR sensors

Applications :

•  Automotive Forward Machine Vision (Sensing)
•  Automotive Mirror Replacement (CMS/eMirror)
•  Security Cameras
•  Computer Vision

Key Features :

• Maximum field of view (FOV): 180°
• All glass design to optimize thermal stability
• F/2.0 for superior low-light performance

Applications :

• Security and Surveillance cameras
• Drone cameras
• Immersive Imaging cameras

The DSL977 is an all-glass lens designed for 1MP HDR imagers. Special optical design, coating and process techniques are applied to achieve the high resolution, low relative aperture eliminating lens ghosting (120dB) and minimize flare and stray light.

Key Features :

• NoGhost, low stray light for HDR sensors
• Low relative aperture F/1.8
• Face Sealed to IP6K9K
• Compact size

Key Features :

• Wide field of view : 126 deg HFOV on 1/3” imager
• Excellent low light performance: F/2.0 aperture
• All glass elements providing environmental stability
• Distortion: f-θ type (image height is proportional to the input angle h=f*θ where f is the focal length).

DSL239-650-F2.4
4K Miniature SuperFisheyeTM Lens

Key Features :

• SuperFisheye FOV: 186°
• Good low light perfomance : F/2.4 aperture
• 27,00mm TTL

Applications :

• Security and Surveillance cameras
•  Drone cameras
•  Immersive Imaging cameras

DSL208A-650-F4.0 lens is a miniature glass lens optimized for HD imagers up to 1/3” format with HD resolution. This lens is Day/Night optimized and is near infrared corrected.

Available in NIR versions: No IR cut filter

The DSL936 is a multi-element glass lens optimized for 1⁄2” imagers with up to 5MP resolution. The DSL936 is Day/Night optimized for improved performance in the near infrared making this lens ideal for applications which require active illumination at 850nm or 940nm.

Lens for M12x0.5 mount.
This lens can be used with 1/3" sensors and has an F1.6 aperture.

Key Features :

•  Tailored DistortionTM
•  4k+ resolution
•  Compact Design

Applications :

• Video Conferencing
• Drones
• Security and Surveillance
• Consumer Devices and IoT

DSL315B-650-F2.3

Key Features :

4K Miniature SuperFisheye TM Lens
• 190-degree field of view
• Compatible with many common sensor formats/resolutions
• All glass elements provide environmental stability

Applications :

• Security / Surveillance
• VR / 360o cameras
• Computer Vision
