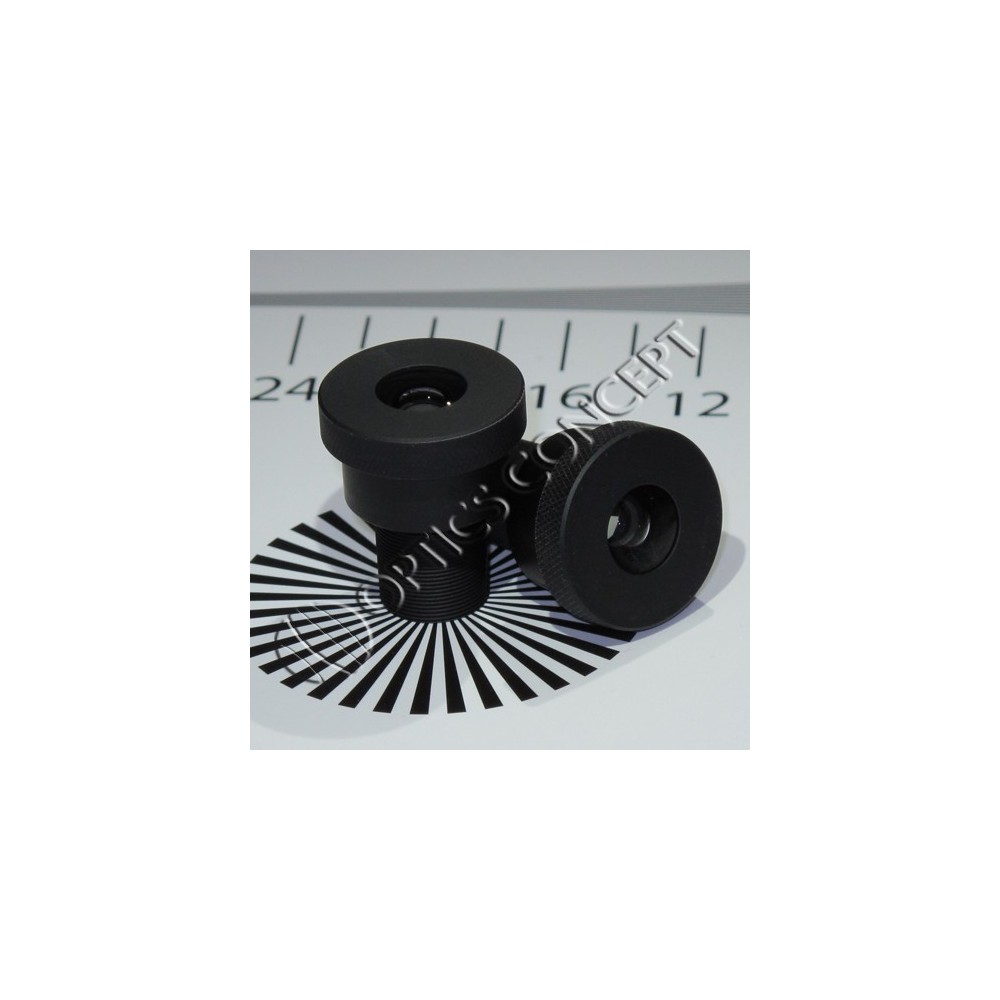

Objectif DSL608

Key Features :

• Wide field of view: 75°HFOV on 1/4” imager
• All glass elements provides environmental stability
• Distortion: f-θ type (image height is proportional to the input angle h = f*θ where f is the focal length)

Applications :

• Security and Surveillance

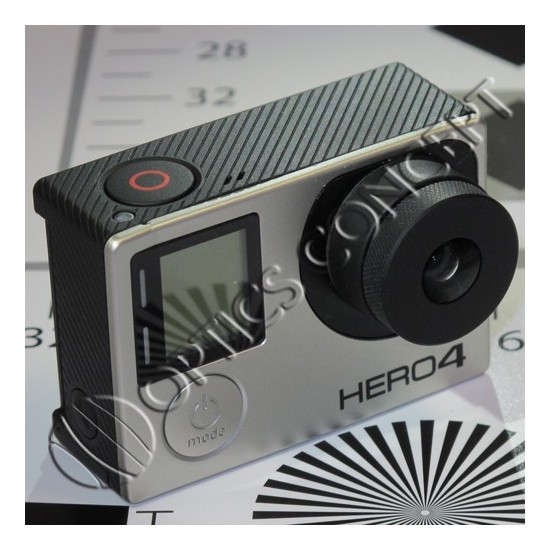

Compatibility GoPro® HERO 1 HERO 2 HERO 3, HERO and HERO 4®

• This objective is part of a new optical generation.
• There is no better in technology.
• This optical record with a field of view of 90 °. Without cut NIR

Key Features :

• Maximum field of view (FOV): 180°
• All glass design to optimize thermal stability
• F/2.0 for superior low-light performance

Applications :

• Security and Surveillance cameras
• Drone cameras
• Immersive Imaging cameras

The DSL213 is a miniature wide-angle and Day/Night lens designed for 1/3” format imagers with up to 2MP resolution. The Near Infrared correction and low F/# make this lens ideal for compact applications using active 850nm or 940nm light sources, and those used in low light situations.

NIR versions: No IR cut filter

Ultra-low F/# for superb low-light imaging in Automotive, Autonomous and Security related applications, 4K, Low-Ghost design provides excellent image quality.

• Hybrid lens for excellent image and distortion characteristics
• HDR-Optimized for Low flare and ghost
• High (4K) resolution and extremely low F/# for bright, sharp images.

Compatible with GoPro HERO1, HERO2 , HERO3, HERO3+ and HERO4 ®.

Maintains large field properties for your camera and HD quality.

It will bring you images with very low distortion and optimum color resolution.

The prefered optical of drone owners.

Choose your filter : we can offer a version for infrared observations.

The DSL181 lens is a miniature SuperFisheyeTM lens with Tailored DistortionTM designed with a field of view of up to 190 degrees on 1/4” to 1/2” format imagers with HD resolution. The low F-number, thermal stability, and special distortion characteristics make this lens ideal for exterior based camera applications.

The DSL935 lens is a multiple element glass lens optimized for 1/1.8” format imagers with up to 5MP resolution. The small form factor makes this lens ideal for high performance handheld cameras.

DSL208A-650-F4.0 lens is a miniature glass lens optimized for HD imagers up to 1/3” format with HD resolution. This lens is Day/Night optimized and is near infrared corrected.

Available in NIR versions: No IR cut filter

The DSL945 is a 4K lens designed for 1/2.3” imagers with up to 10MP resolution. The high resolution of this lens makes it ideal for scanning and finite conjugate machine vision applications.

Key Features  :

•  Wide angle, low distortion
•  High performance compact design
•  Finite conjugate optimized

Applications :

•  Document scanning
•  Video-conferencing
•  Finite Imaging

DSL355A-650-F2.8

Key Features :

• Miniature Wide Angle Lens
• Compact size
• High image quality
• Low distortion

Applications :

• Security / Surveillance
• Telecommunications / Video-Conferencing
• Action Cameras

The DSL936 is a multi-element glass lens optimized for 1⁄2” imagers with up to 5MP resolution. The DSL936 is Day/Night optimized for improved performance in the near infrared making this lens ideal for applications which require active illumination at 850nm or 940nm.

Key Features :

•  All glass construction to optimize thermal stability
•  Low F/# for improved low light performance
•  Compact size

Applications :

•  Security and Surveillance
•  Drone cameras
•  Immersive Imaging

DSL216 lens is a miniature, high-resolution SuperFisheyeTM lens designed to give a fisheye image with a horizontal field of view greater than 180 degrees on a 1/3” format sensor making it ideal for security or emerging applications like 360° cameras. Additionally, the DSL216 has an all-glass all-metal design which gives it thermal stability.
