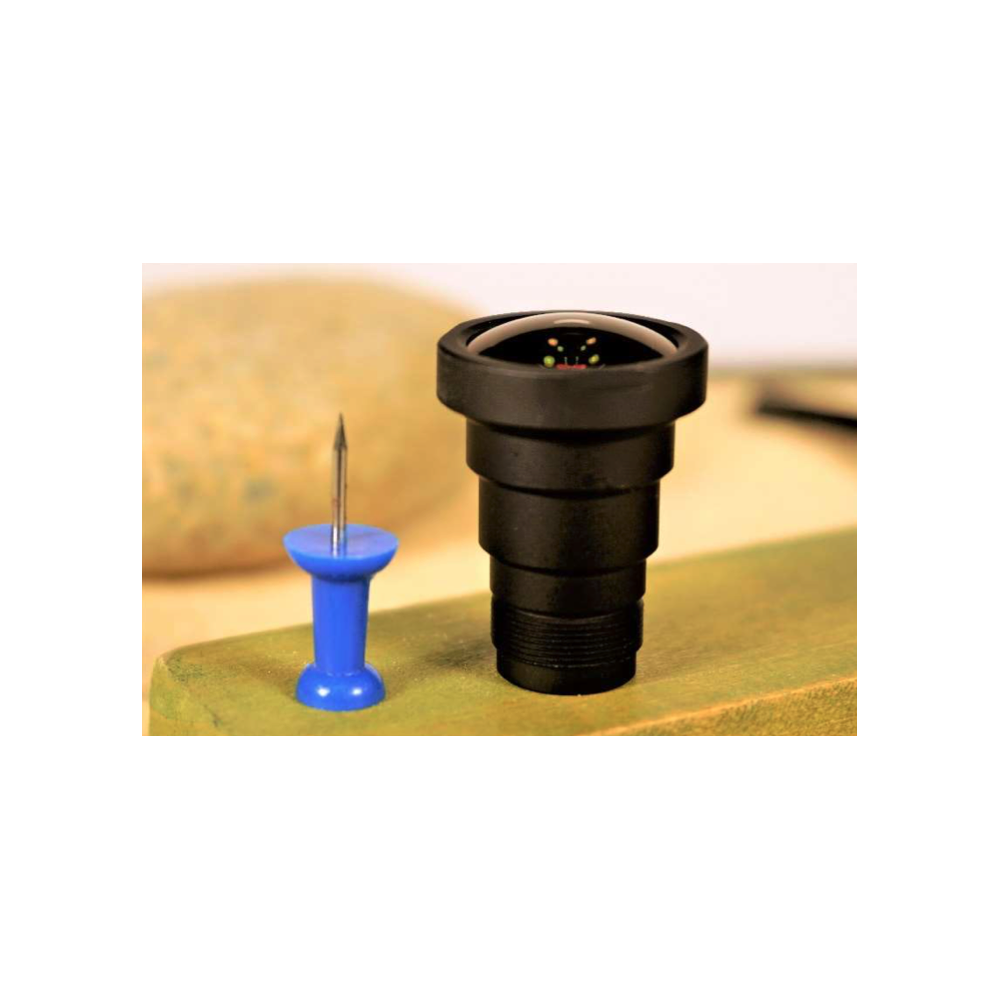

Reference: DSL147A-650-F1.4
The DSL147 is a high-performance, wide-angle, low-light lens with 4K resolution and F/1.4 aperture, designed for 1/3" and 1/2.8" HDR sensors. The all-glass construction makes it thermally stable and ideally-suited for indoor or outdoor applications in harsh environments.
The DSL147 is a high-performance, wide-angle, low-light lens with 4K resolution and F/1.4 aperture, designed for 1/3" and 1/2.8" HDR sensors. The all-glass construction makes it thermally stable and ideally-suited for indoor or outdoor applications in harsh environments.
Key Features :
• F/1.4 Aperture
• Wide-Angle; 122° HFOV @ 5.2mm (typical 1/2.8" horizontal)
• 4K (6-8mp) resolution on 1/3" and 1/2.8" sensors
• All glass/metal construction
Applications :
• Security
• Automotive/ADAS
• Autonomous Vehicles
• Commercial Drones
Data sheet
The DSL147 is a high-performance, wide-angle, low-light lens with 4K resolution and F/1.4 aperture, designed for 1/3" and 1/2.8" HDR sensors. The all-glass construction makes it thermally stable and ideally-suited for indoor or outdoor applications in harsh environments.
The DSL181 lens is a miniature SuperFisheyeTM lens with Tailored DistortionTM designed with a field of view of up to 190 degrees on 1/4” to 1/2” format imagers with HD resolution. The low F-number, thermal stability, and special distortion characteristics make this lens ideal for exterior based camera applications.
DSL208 lens is a miniature glass lens optimized for HD imagers up to 1/3” format with HD resolution. This lens is Day/Night optimized and is near infrared corrected.
Available in NIR versions: No IR cut filter
Key Features:
• 176° wide angle FoV
• Good low light performance: F/2.0 relative aperture
• All glass design to optimize thermal stability
Applications:
• Automotive Rear View Cameras
• Security and Surveillance
• Computer Vision
DSL311A 650F2.8
Key Features :
• 151° FOV
• F/2.8
• 22mm TTL
Applications:
• Security/Surveillance
• Automotive Rear-view
• Sports and Wearable Cameras
The DSL212 is a miniature wide-angle all-glass lens with Tailored Distortion. This lens was optimized for 1/3” format sensors with up to HD resolution. The Tailored Distortion wide field of view and all glass construction make it ideal for outdoor applications which depend on off axis angular resolution.
Available in NIR versions: No IR cut filter
DSL322A-650-F2.0
Key Features :
• Miniature Wide Angle Day/Night Lens
• Compact design
• High image quality
• Wide angle design
Applications :
• Security / Surveillance
• Computer Vision
Compatibility GoPro® HERO 1 HERO 2 HERO 3, HERO and HERO 4®
• This objective is part of a new optical generation.
• There is no better in technology.
• This optical record with a field of view of 90 °. Without cut NIR
The DSL934B is a multi-element glass lens optimized for 3-5MP imagers with up to 1/1.8” format size. The compact size and all-glass all-metal construction make this lens ideal for applications requiring high resolution and temperature stability such as discreet outdoor security cameras.
DSL165 is a high-performance lens with ultra-low F/# for superior low light imaging in Automotive, Autonomous and Security applications. Low-Ghost HDR and 4K design provide excellent image quality. The all-glass construction makes it thermally stable and ideally-suited for indoor or outdoor applications in harsh environments.
DSL217C-670-F1.8
• Maximum field of view (FOV): 185o
• F/1.8 aperture for low-light performance
• Hybrid glass-plastic design
• Suitable for megapixel resolution sensors
Key Features :
• Wide field of view: 75°HFOV on 1/4” imager
• All glass elements provides environmental stability
• Distortion: f-θ type (image height is proportional to the input angle h = f*θ where f is the focal length)
Applications :
• Security and Surveillance
The DSL183 lens is a miniature SuperFisheyeTM lens with Tailored DistortionTM designed with a field of view of up to 181 degrees on 1/3.2” to 1/1.8” format imagers with HD resolution. The low F-number, thermal stability, and special distortion characteristics make this lens ideal for exterior based camera applications.
The DSL978 is a compact, low F/# lens designed for low light HD/HDR applications. This lens is optimized for useHD sensors with imager format up to 1/3”. The all-glass design provides stable image quality over a wide temperature range.
Key Features :
• NoGhostTM
• Compact Size
• F/1.6 for low light and high framerate cameras
• Excellent Thermal Stability
Key Features :
• Compact Size
• F/1.6 for low light and high framerate cameras
• Excellent thermal Stability
• Optimized for HDR sensors
Application :
• Automotive Forward Machine Vision (sensing)
• Automotive Mirror Replacement (CMS/eMirror)
• Object Recognition
Lens for M12x0.5 mount.
This lens can be used with 1/3" sensors and has an F1.6 aperture.
