Reference: DSL208A-650-F2.0

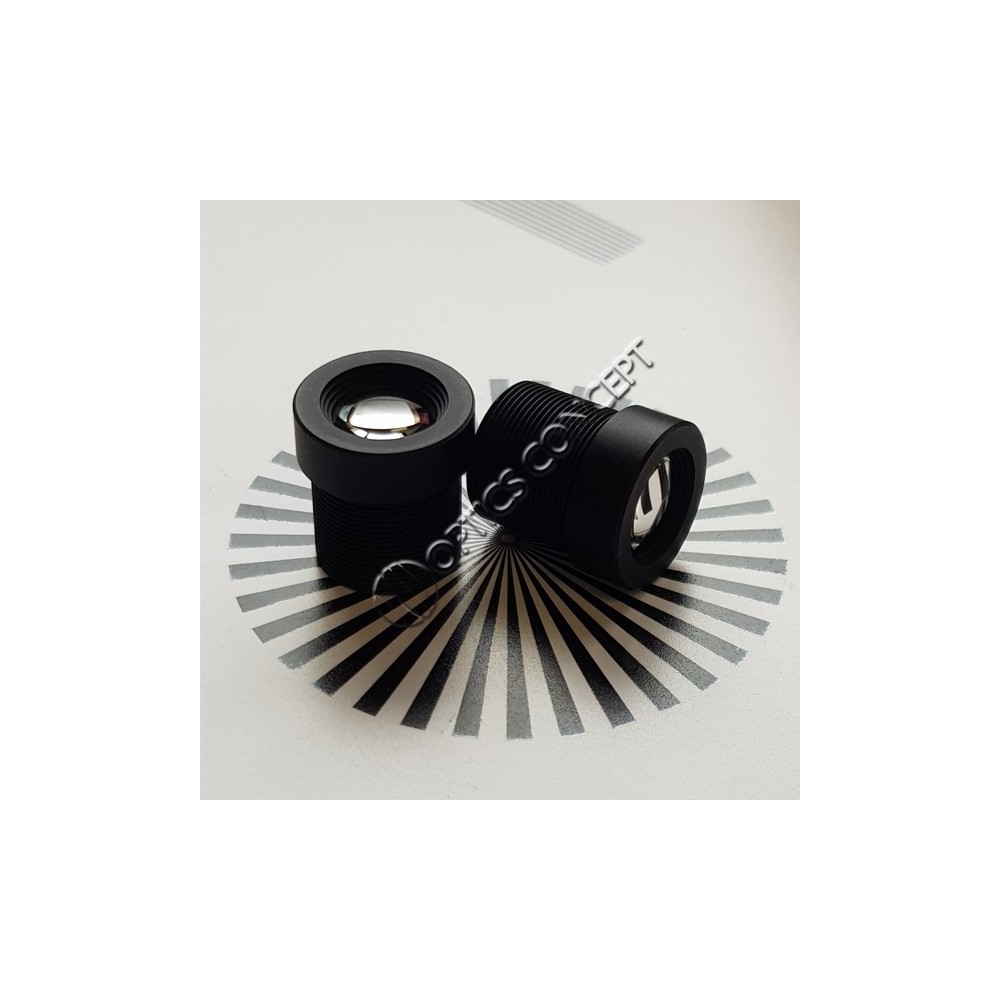

DSL208 lens is a miniature glass lens optimized for HD imagers up to 1/3” format with HD resolution. This lens is Day/Night optimized and is near infrared corrected.
Available in NIR versions: No IR cut filter
Key Features :
• Day/Night Optimized
• Telephoto field of view
• All glass elements to provide thermal stability
• High quality image
• Multilayer anti-reflection coatings on all lens elements
Applications :
• Automotive
• Security and surveillance
• Machine Vision
Data sheet
DSL208 lens is a miniature glass lens optimized for HD imagers up to 1/3” format with HD resolution. This lens is Day/Night optimized and is near infrared corrected.
Available in NIR versions: No IR cut filter
DSL208A-650-F4.0 lens is a miniature glass lens optimized for HD imagers up to 1/3” format with HD resolution. This lens is Day/Night optimized and is near infrared corrected.
Available in NIR versions: No IR cut filter
Key Features :
• Tailored DistortionTM
• 4k+ resolution
• Compact Design
Applications :
• Video Conferencing
• Drones
• Security and Surveillance
• Consumer Devices and IoT
Compatible with GoPro HERO1, HERO2 , HERO3, HERO3+ and HERO4 ®.
Maintains large field properties for your camera and HD quality.
It will bring you images with very low distortion and optimum color resolution.
The prefered optical of drone owners.
Choose your filter : we can offer a version for infrared observations.
The DSL945 is a 4K lens designed for 1/2.3” imagers with up to 10MP resolution. The high resolution of this lens makes it ideal for scanning and finite conjugate machine vision applications.
Key Features :
• Wide angle, low distortion
• High performance compact design
• Finite conjugate optimized
Applications :
• Document scanning
• Video-conferencing
• Finite Imaging
Compatibility GoPro® HERO 1 HERO 2 HERO 3, HERO and HERO 4®
• This objective is part of a new optical generation.
• There is no better in technology.
• This optical record with a field of view of 90 °. Without cut NIR
Key Features :
• Low F/# for optimal low-light performance
• All glass elements provide environmental stability
• Cost effective construction
Applications :
• Security/Surveillance Dome Cameras
• Automotive surround view
The DSL491 is an all-glass, high-resolution (4K+), wide- angle lens designed for HDR and/or 4K sensors up to 1/2”format size. The design provides a maximum FOV of 150 ̊ at maximum image circle of 8.0mm. The compactsize and thermal stability make this lens ideal for security and other high-quality indoor/outdoor imaging applications.
Compatible with the CMT 398
The DSL977 is an all-glass lens designed for 1MP HDR imagers. Special optical design, coating and process techniques are applied to achieve the high resolution, low relative aperture eliminating lens ghosting (120dB) and minimize flare and stray light.
Key Features :
• NoGhost, low stray light for HDR sensors
• Low relative aperture F/1.8
• Face Sealed to IP6K9K
• Compact size
DSL217C-670-F1.8
• Maximum field of view (FOV): 185o
• F/1.8 aperture for low-light performance
• Hybrid glass-plastic design
• Suitable for megapixel resolution sensors
Key Features :
• F/1.7 for enhanced low light sensitivity
• All glass to optimize thermal stability
• Low stray light for HDR sensors
Applications :
• Automotive Forward Machine Vision (Sensing)
• Automotive Mirror Replacement (CMS/eMirror)
• Security Cameras
• Computer Vision
DSL398B-660-F2.8
Key Features :
• Tailored DistortionTM
• 4k+ resolution
• Compact Design
Applications :
• Video Conferencing
• Security and Surveillance
• Consumer Devices and IoT
• Drones
The DSL183 lens is a miniature SuperFisheyeTM lens with Tailored DistortionTM designed with a field of view of up to 181 degrees on 1/3.2” to 1/1.8” format imagers with HD resolution. The low F-number, thermal stability, and special distortion characteristics make this lens ideal for exterior based camera applications.
DSL311A 650F2.8
Key Features :
• 151° FOV
• F/2.8
• 22mm TTL
Applications:
• Security/Surveillance
• Automotive Rear-view
• Sports and Wearable Cameras
DSL322A-650-F2.0
Key Features :
• Miniature Wide Angle Day/Night Lens
• Compact design
• High image quality
• Wide angle design
Applications :
• Security / Surveillance
• Computer Vision
The DSL180 lens is a Tailored DistortionTM, miniature SuperFisheyeTM lens designed with a field of view of up to 200 degrees on 1/5” to 1/2.8” format imagers with HD resolution. Special design techniques and hybrid design form are used to achieve increased magnification (angular resolution) off axis compared to a standard fisheye lens.
NIR versions: No IR cut filter
DSL216 lens is a miniature, high-resolution SuperFisheyeTM lens designed to give a fisheye image with a horizontal field of view greater than 180 degrees on a 1/3” format sensor making it ideal for security or emerging applications like 360° cameras. Additionally, the DSL216 has an all-glass all-metal design which gives it thermal stability.
