Reference: DSL227A

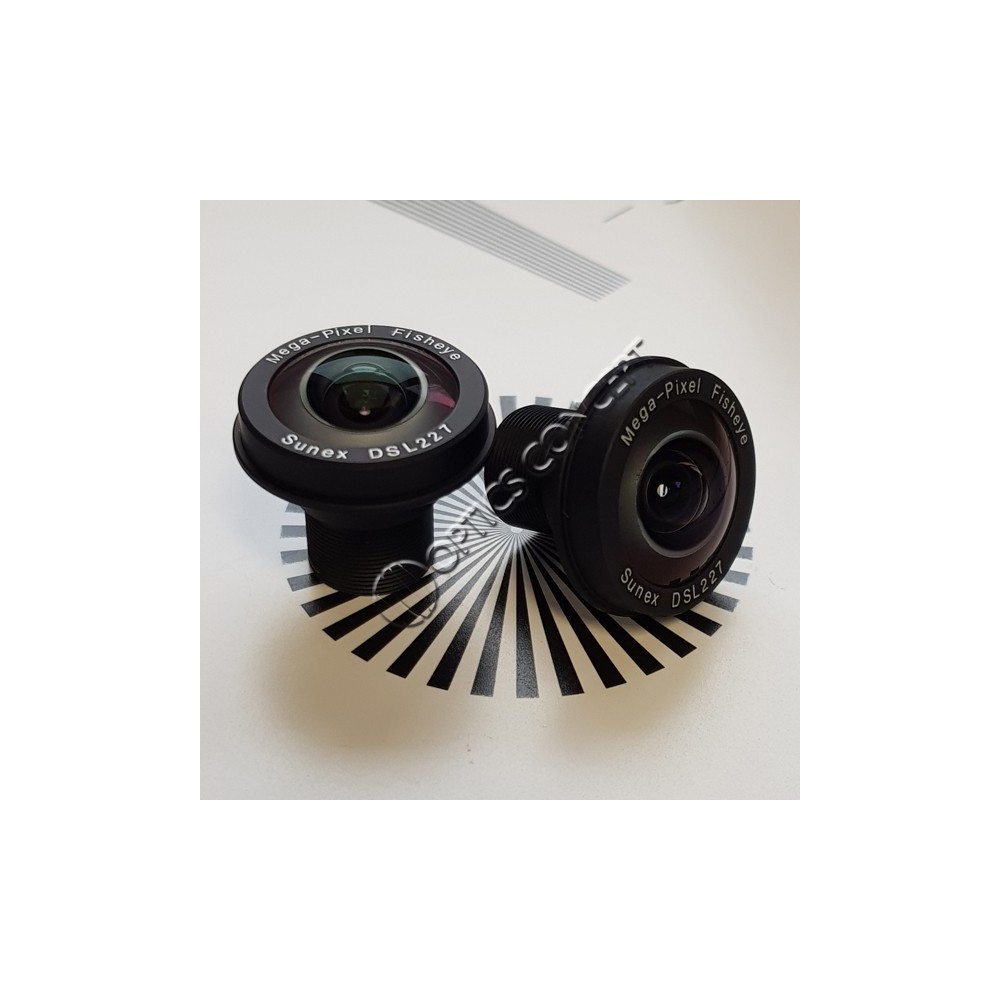

Lens DSL227A
€140.93
Tax included
Key Features :
• All glass construction to optimize thermal stability
• Low F/# for improved low light performance
• Compact size
Applications :
• Security and Surveillance
• Drone cameras
• Immersive Imaging
The DSL227 lens is a miniature SuperFisheyeTM lens designed to provide 180 ̊ diagonal field of view on a 1/3.2” sensor
with multi-megapixel resolution and a 180 ̊ circular fisheye image on a 1/1.7” sensor with 4K resolution. The fast F/2.0 aperture makes the DSL227 ideal for low-light security, surveillance, and consumer imaging applications.
DSL227A
Data sheet
- Lens barrel thread
- M12 x 0,50
- Focal length
- 1,96mm
- Sensor size
- 1/1,7"
- Resolution
- 10PM
- F/#
- F/2.0
- Distortion
- -9% F-θ
- Back focus
- 4,9mm
- Description
- Miniature super-fisheye
- Height
- 26,9mm
- Diameter
- 23,5mm
- Total length
- 26,9mm
- Maximum FOV for image circle
- 180° pour cercle d'image 5,6mm
- Image circle
- 5,6mm
- Construction
- Hybride
- Body material
- Metal
- Filter
- IR intégré - Version NIR
- Color
- Black
- Taille du capteur maximale
- 1/2" ou plus grand
- Champ de vision maximum
- Supérieur à 175°
- Focale
- 0 à 2 mm
- Résolution
- 4K et plus
- Ouverture
- Inférieur ou égal à 2
Key Features :
• All glass construction to optimize thermal stability
• Low F/# for improved low light performance
• Compact size
Applications :
• Security and Surveillance
• Drone cameras
• Immersive Imaging
